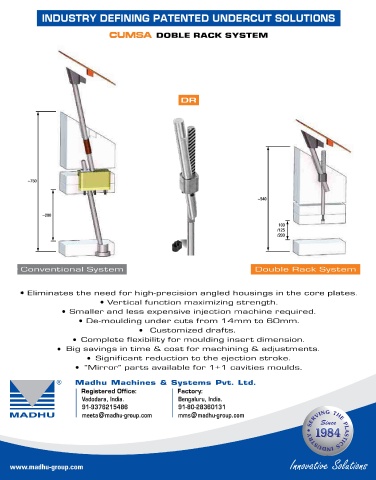

INDUSTRY DEFINING PATENTED UNDERCUT SOLUTIONS


                                                    DOBLE RACK SYSTEM












                                                            DR
































        Conventional System                                                         Double Rack System


          Eliminates the need for high-precision angled housings in the core plates.
                                    Vertical function maximizing strength.
                        Smaller and less expensive injection machine required.
                             De-moulding under cuts from 14mm to 60mm.
                                                  Customized drafts.
                           Complete flexibility for moulding insert dimension.
                      Big savings in time & cost for machining & adjustments.
                                Significant reduction to the ejection stroke.
                            “Mirror” parts available for 1+1 cavities moulds.


                           Registered Office:              Factory:
                            Vadodara, India.               Bengaluru, India.
                            91-9376215486                  91-80-28360131
                            meeta@ madhu-group.com         mms@  madhu-group.com                       V  I  N
                                                                                                      E  R  Since
                                                                                                      S
                                                                                                       1984
                                                                                                       R 1984
                                                                                                      Y  T  S  U  N
                                                                                                           G THE PLASTICS I D
