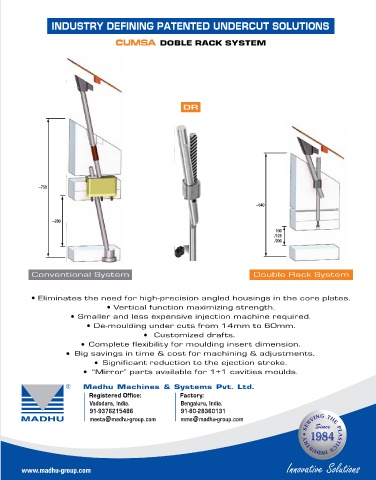

INDUSTRY DEFINING PATENTED UNDERCUT SOLUTIONS
DOBLE RACK SYSTEM
DR
Conventional System Double Rack System
Eliminates the need for high-precision angled housings in the core plates.
Vertical function maximizing strength.
Smaller and less expensive injection machine required.
De-moulding under cuts from 14mm to 60mm.
Customized drafts.
Complete flexibility for moulding insert dimension.
Big savings in time & cost for machining & adjustments.
Significant reduction to the ejection stroke.
“Mirror” parts available for 1+1 cavities moulds.
Registered Office: Factory:
Vadodara, India. Bengaluru, India.
91-9376215486 91-80-28360131
@
@
meeta madhu-group.com mms madhu-group.com R V I N
